Double layers cash register thermal paper roll slitting rewinding machine

    Buy cheap Double layers cash register thermal paper roll slitting rewinding machine from wholesalers

    Buy cheap Double layers cash register thermal paper roll slitting rewinding machine from wholesalers
    • Buy cheap Double layers cash register thermal paper roll slitting rewinding machine from wholesalers
    • Buy cheap Double layers cash register thermal paper roll slitting rewinding machine from wholesalers
    • Buy cheap Double layers cash register thermal paper roll slitting rewinding machine from wholesalers

    Double layers cash register thermal paper roll slitting rewinding machine

    Ask Lasest Price
    Brand Name : Chancer
    Model Number : PPD-700-2
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 100set per year
    Delivery Time : 30 working days after get 30% deposit
    • Product Details
    • Company Profile

    Double layers cash register thermal paper roll slitting rewinding machine

    Double layers cash register thermal paper roll slitting rewinding machine


    USAGE:


    It is mainly suitable for slitting all kinds of FAX PAPER, CASH REGISTER, COMPUTER BILL, MEDICAL RECORD PAPER,POS PRINTING PAPER,ATM REEL PAPER, film and self adhesive paper etc.


    FUNCTION:


    It is adopt the surface rewinding way, automatic replicate, insert reel. The electric part adopt the most advanced PLC controller. All of the program are set by the touch screen(PLC). Unwinding is used to automatic loading system, the tension force is controlled by the Programmable Logic Controller. It is the most advanced numerical control cash register slitting equipment in China.


    ModelPPD-500-2PPD-700-2PPD-900-2
    Maximum web width500700900
    paper weight40-180g40-180g40-180g
    slitting width30-500mm30-700mm30-900mm
    working speed168m/minute168m/minute168m/minute
    maximum unwinding diameter750mm750mm750mm
    maximum rewinding diameter160mm160mm160mm
    Main motor power3kw3kw3kw
    standard slitting width

    30mm 57 65 75 80 ,,,,500mm

    30mm 57 65 75 80 ,,,,700mm

    30mm 57 65 75 80 ,,,,800mm

    voltage380v,50hz,3phases380v,50hz,3phases380v,50hz,3phases
    machine weight1100kg1300kg
    machine dimension

    2100x1700x1500

    2300x1900x1500

    2300x2100x1500

    Contacts:


    Double layers cash register thermal paper roll slitting rewinding machine

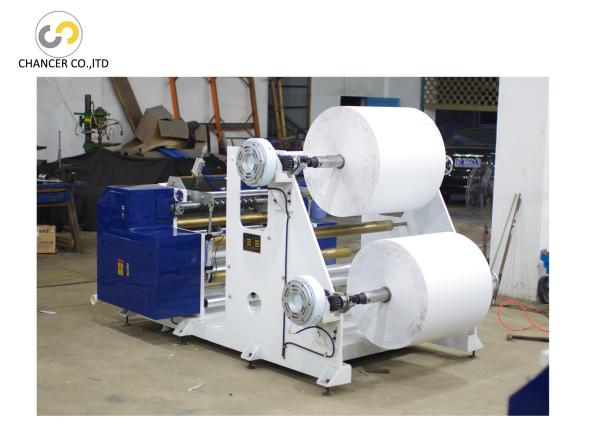

    Machine picture:

    Double layers cash register thermal paper roll slitting rewinding machine

    Sample picture:


    Double layers cash register thermal paper roll slitting rewinding machine
