Automatic shopping paper bag twisted paper rope making machine

Ask Lasest Price
Brand Name :	Chancer
Model Number :	FY-10K
Certification :	CE
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	100sets per year
Delivery Time :	30 working days after getting 30% deposit

Add to Cart

Product Details
Company Profile

Automatic shopping paper bag twisted paper rope making machine

Product Detailed Description:

This machine mainly support high speed paper handle machine and paper bag machine. It can make paper rope in a high speed and provide paper rope for paper handle machine. The machine uses narrow web as raw material, through the high speed spinning of the axes of the machine,paper twisted into rope and kept in paper rope roll.Users can adjust the diameter of the paper rope to meet different production needs. We can also upgrade the machine to make it can make two roll paper rope at the same time according to the customers' need which can improve the production efficiency.

Technical Parameters:

Core Diameter of Raw Rope Roll	Φ76 mm(3'')
Max. Paper Rope Diameter	400mm
Paper Roll Width	20-100mm
Paper Thickness	20-60g/㎡
Paper Rope Diameter	Φ2.5-6mm
Max. Rope Roll Diameter	300mm
Max. Paper Rope width	300mm
Production Speed	15-20m/min
Power Requirements	220V
Total Power	1.1KW
Total Weight	Approx.350KG
Overall Dimension	L1580W1150H930mm

Contacts:

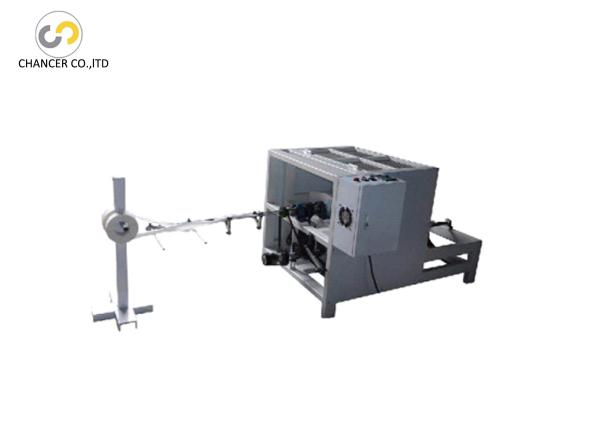

Machine picture:

Automatic shopping paper bag twisted paper rope making machine

Sample:

Automatic shopping paper bag twisted paper rope making machine
