    Automatic square bottom flat rope paper handle pasting machine

    Ask Lasest Price
    Brand Name : Chancer
    Model Number : FY-888
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 100sets per year
    Delivery Time : 40 working days after getting 30% deposit
    • Product Details
    • Company Profile

    Automatic square bottom flat rope paper handle pasting machine


    Automatic square bottom flat rope paper handle pasting machine


    Introduction:


    This machine is mainly supporting semi-automatic paper bag machines,Through a complex process, it makes four cutted rolls of paper which have been cut into flat rope and flat handle once shaping,It can produce the flat paper handle on line ,and stick the handle on the bag on line too.

    the machine also has automatic counting and gluing functions, which can greatly improve the efficiency of subsequent processing operations of users.


    Technical Data


    Overall dimensionL7000*W1600*H1500mm
    Motor brandLongbang geared motor
    Total power10KW,50HZ
    Servo motor brandSiemens
    Servo motor power750W one group
    PIC programming brandSiemens
    Hot melt machine brandHuangshang Taiwan
    Mechanical armHIWIN Taiwan
    Handle Spacing84mm
    Paper Rope Width12mm
    Paper Rope Height100mm
    Paper Width40mm
    Paper Length152mm
    Paper Rope Length352mm
    Paper thickness80-140g
    Bag width250-400mm
    Bag height250-450mm
    Top opening size over 130mm(Bag Width minus the width of folding )
    Production speed30-35pcs/min
    Contacts:

    Automatic square bottom flat rope paper handle pasting machine

    Machine picture:

    Automatic square bottom flat rope paper handle pasting machine

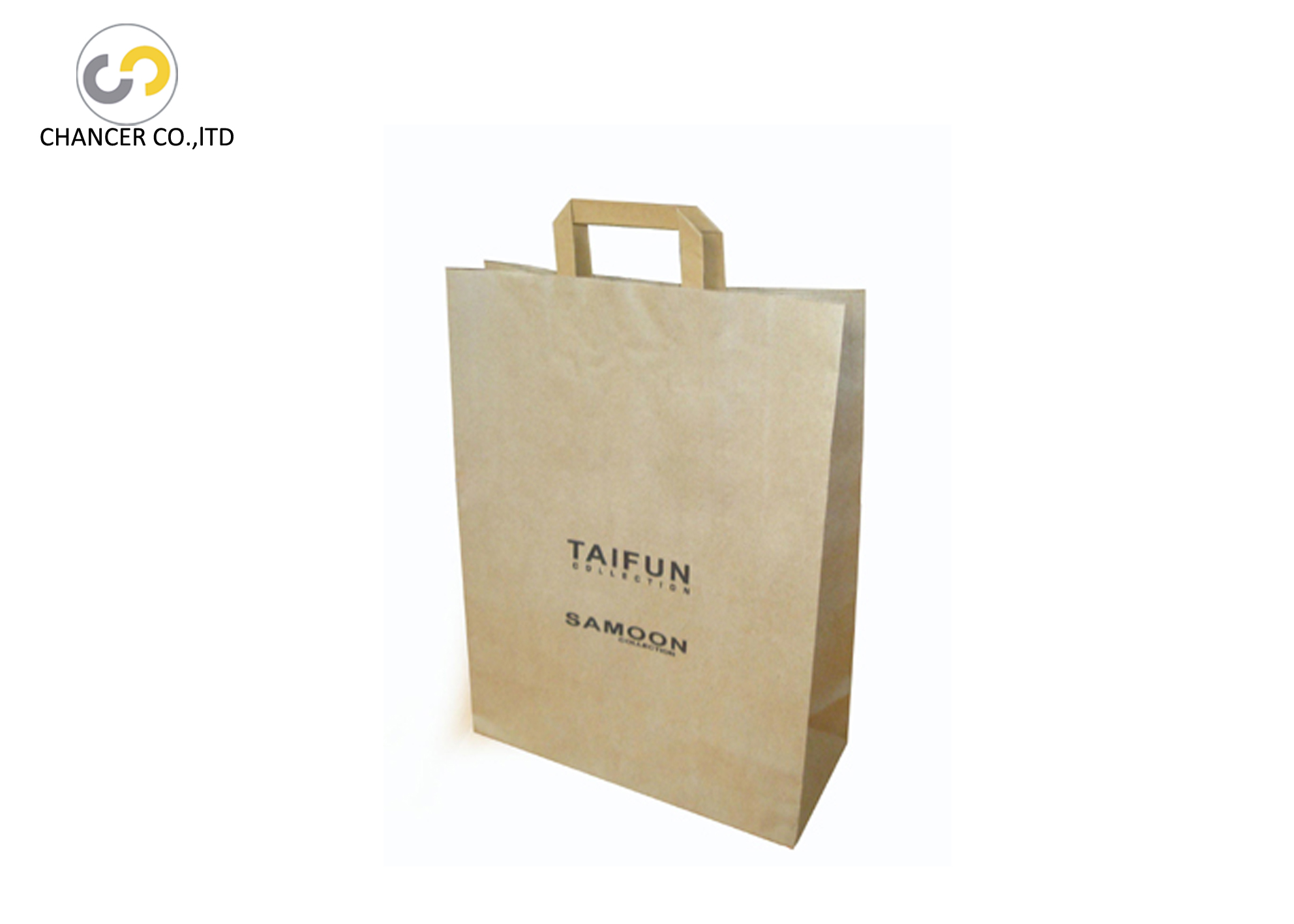

    Sample:
