Kraft paper bag plastic film bag flexo machine flexo printing machine

Usage:

It is suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and paper in roll, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
It's quite commonly used for small order quantity printing service.

Performance and Features:

1. Easy operation, flexible starting, accurate color register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6. 360°continuous and adjustable longitudinal register device.
7. The frequency control of motor speed adapts to different printing speeds.
8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.

Machine technical parameter:

Model No.	YT-2600	YT-2800	YT-21000
Max.Web Width	600mm	800mm	1000m
Max.Effective Printing Width	560mm	760mm	960mm
Range of Repeat Printing Length	191~914mm	191~914mm	191~914mm
Max.Diameter of Roll Material	450mm	450mm	450mm
Printing Speed	5-50m/min	5-50m/min	5-50m/min
Plate Thickness(Both side adhesive tape included)	2.38mm	2.38mm	2.38mm
Total Power	8kw	10Kw	12Kw
Weight of Machine	1800kg	2000kg	2200kg
Machine Dimension	2300×1700×2500mm	2300×1900×2500mm	2300×2100×2500mm

Contacts:

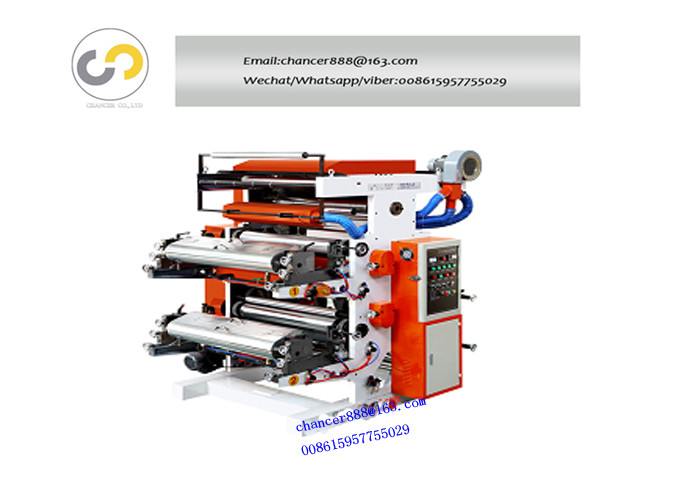

Machine picture:

Sample:
