High speed solvent based glue dry plastic film aluminium foil laminating machine

Ask Lasest Price
Brand Name :	Chancer
Model Number :	ZBGF-850
Certification :	CE
Price :	Negotiation
Payment Terms :	T/T
Supply Ability :	60 sets per year
Delivery Time :	30 working days after get 30% deposit

Add to Cart

Product Details
Company Profile

High speed solvent based glue dry plastic film aluminium foil laminating machine

Use:

This machine suitable for the double layers or multi layers lamination of such roll film materials as BOPP, PET, Nylon, CPP, CPE, aluminum foil. The film laminated by this machine can be used for package materials with high requirements on strength, fresh-keep and cooking bag.

Technical parameter:

Model	ZBGF-850 (3Vector Motor)
Effective Laminating Width	850mm
Max. Width of Base Material	850mm
Max. Machine Speed	120m/min
Max. Diameter of primary unwinding	Ф600mm
Max. Diameter of secondary unwinding	Ф600mm
Max. Diameter of rewinding	Ф600mm
Inside Diameter of Roll Core of Base Material	Ф76mm
Layer Quantity of Laminating	Two Layer (for one pass)
Control Range of Tension	3~30 kg (Preset)
Precise of Tension Control	±0.5KG
Heating Power of Oven	84Kw
Total Power for Whole Machine	110KW
Weight of Machine	8500Kg
Overall Dimension	L10600×W3000×H3700mm

Contacts:

High speed solvent based glue dry plastic film aluminium foil laminating machine

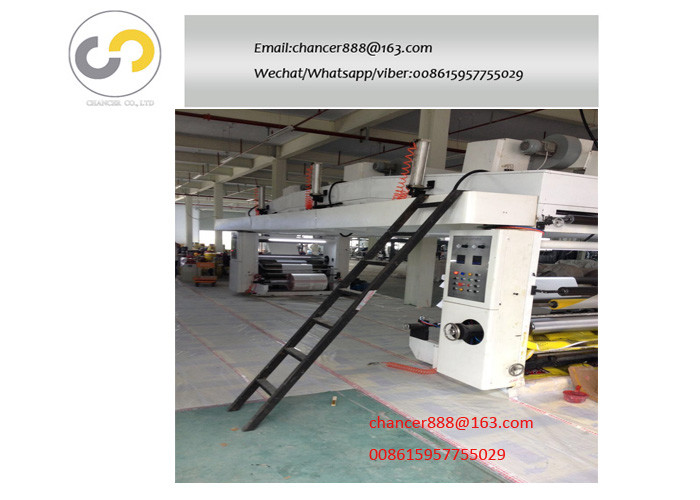

Machine picture:

High speed solvent based glue dry plastic film aluminium foil laminating machine

Sample :

High speed solvent based glue dry plastic film aluminium foil laminating machine
