Automatic egg carton sticker labeling machine, egg box labeler machine

Equipment composition

Electrical cabinet,Conveying mechanism,Separate bag device,Roll label device,Brush label device,1# labeling engines,Operation system and control system ;

The Schematic Diagram of the ELM-A

Worker put the carton on the conveyor one by one, move to the labeling position.

When the sensor test egg carton, send signal to PLC;

The PLC received signal and send to servo motor ;

The servo motor driving the out label motor send label ;

The carton transported to the labeling part, peal label device send label was put on the carton top surface first ;

The air cylinder put the projecting two sides label on the carton two flanks;

The brush label device fix label on the carton more smooth and then finish labeling.

Specification:

Model	ELM-A
Driving Mode	Servo motor
Capacity(pcs/min)	20-70
Operating direction	Left or Right
Labeling position	Top and two more sides on egg carton
Conveyor speed	≤40 (m/min)
Label Specifications	Adhesive sticker , opaque label
The application of label object	Customized as the egg carton
The application of label	Height 20-180mm Length 25-300mm
The inner diameter of label roll	76mm
The outer diameter of label roll	350mm(max)
Power of motor (w)	600W
Voltage (In China)	AC220V 50/60HZ Single phase (Can customized as buyer need)
Dimension (mm)	2200 (L) 900 (W) 1600 (H) mm

Contacts:

Automatic egg carton sticker labeling machine, egg box labeler machine

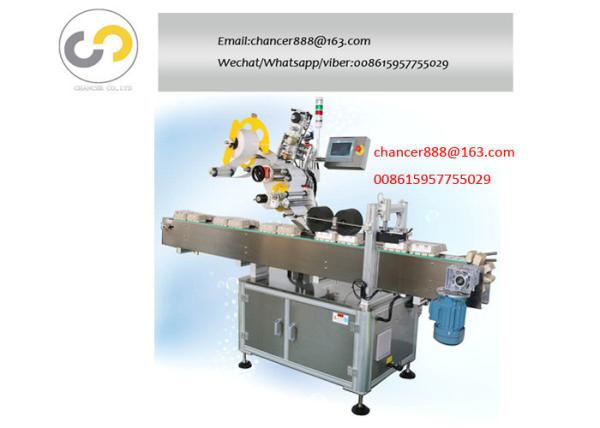

Machine picture:

Automatic egg carton sticker labeling machine, egg box labeler machine

Sample:

Automatic egg carton sticker labeling machine, egg box labeler machine
