Automatic PLC control double sides bottle sticker labeling machine
The Scope of Application
Label on the front and back sides of different kinds objects, such
as round bottle, flat bottle,square bottle, cans, jars, carton and
so on.
Device Characteristic
Adopt mature technology PLC control system, operation is stable and
high-speed
Using touch-screen man-machine interface operating system, simple
and efficient;
Upgraded disc label station design, also can suit for conical and
flask bottle.
Screw adjustment to suppress body movements accurately
Synchronization chain mechanism ensure labeling smooth and precise
calibration.
Advanced technology of pneumatic coding system, print the batch
number and expiry date clearly.
Transmission-type roll label device, make sure the label attached
more firmly;
Butterfly designed station, machine’s angle can be adjusted to
adapt different bottle's shape and size.
Device Advantages
Imported electric elements, stable performance, low failure rate;
Adopting photoelectric detection, PLC control, software operation,
conveyor belt, labeling accurately and high precision;
Can be operated alone or contract with the production line;
No bottle not labeling, automatic alarm when leakage and without
label.
The whole machine use material S304 stainless steel and anodized
senior aluminum alloy material ,with high corrosion resistance and
never rust
Specification:
| Model | DLM-A |
| Driving Mode | Servo motor |
| Operating direction | Left or Right |
| Capacity(pcs/min) | 30-120 |
| Conveyor speed(m/min) | ≤40 |
| Labeling Accuracy | ±1.0 mm |
| Label application | Adhesive sticker, opaque label |
| The inner diameter of label roll | 76 mm |
| The outer diameter of label roll | 350 mm(max) |
| The application of label | Height: 15-300 mm length 15-300 mm |
| The application of label objects | Can customizing |
| Printer use air | 5kg/cm ² |
| Power(w) | 800W |
| Voltage (In China) | AC220V 50/60HZ Single side (Can customized as buyer need) |
| Weight(kg) | 280kg |
| Machine size(mm) | 2400(L) 1300(W) 1500(H)mm |
Contacts:

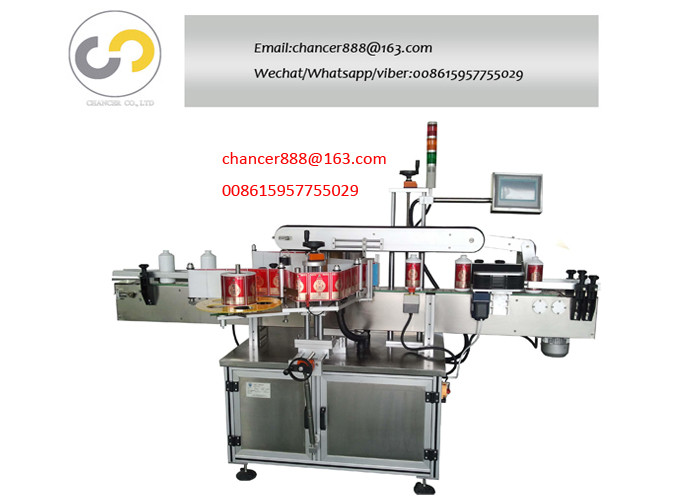

Machine picture:
Sample:
