Automatic double sides box labeling machine, cardboard box labeling
machine
The Scope of Application
The model DPM-A label on the top and bottom sides of different
kinds object, like bottle, box,bag,carton and so on.
Device Characteristic
Adopt mature technology PLC control system, operation is stable and
high-speed
Using touch-screen control operating system, simple, practical,
efficient;
Screw adjustment press bottle body move accurately;
Synchronization chain mechanism ensure labeling smooth and precise
calibration.
Advanced technology of pneumatic coding system, print the batch
number and expiry date clearly.
Transmission-type roll label device, make sure the label attached
more firmly;
Butterfly designed station, the angle of machine can be adjusted to
suit for different label object shape and size;
Device Advantages
Imported electric elements, stable performance, low failure rate;
Adopting photoelectric detection, PLC control, software operation,
conveyor belt, labeling accurately and high precision;
Can be operated alone or contract with the production line;
No bottle not labeling, automatic alarm when leakage and without
label.
The whole machine use material S304 stainless steel and anodized
senior aluminum alloy material ,with high corrosion resistance and
never rust
The mechanism and process
The bottle separated by separate bottle device transported to the
conveyor,move stably through the press bottle device;
When the sensor test the bottle, send signal to PLC;
The PLC received the signal and send to servo motor .
The servo motor driving the outing label motor to send label.
The bottle transported to the brush label device, fix the label on the bottle more smooth,then to the next process.
Specification:
| Model | DPM-A |
| Driving mode | Servo motor |
| Capacity (pcs/min) | 30-120 |
| Labeling Speed(m/min) | ≤40 |
| Operating direction | Left or Right |
| The application size of objects | Can Customizing |
| The suitable size of label | Width 15-150 mm length 15-300 mm |
| Labeling accuracy | ±1 mm |
| The inner diameter of label roll | 76mm |
| The outer diameter of label roll | 350mm (max) |
| Power | 1000W |
| Printer use air | 5 kg / cm2 |
| Voltage (In China) | AC220V 50/60HZ Single phase (Can customized as buyer need) |
| Weight(kg) | 300 |
| Size appearance | 2200(L) 800(W) 1600(H) mm |
Contacts:

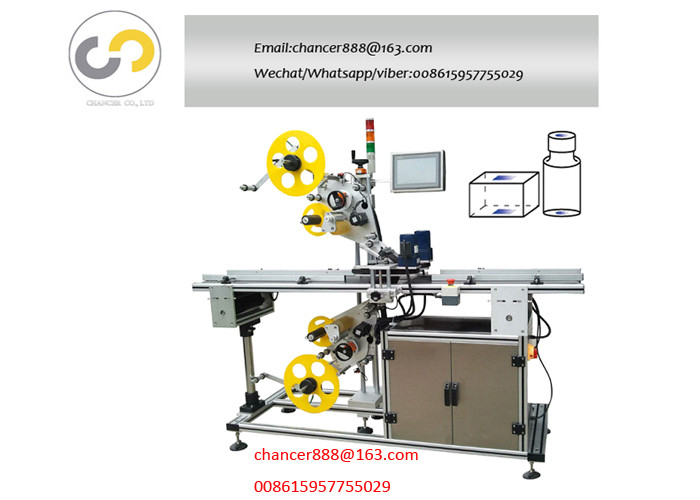

Machine picture:
Sample:
