Industrial Air Cooled Chiller

Ask Lasest Price
Brand Name :	Chancer
Model Number :	AC-1
Certification :	CE
Price :	Price negotiable
Payment Terms :	T/T
Supply Ability :	200set per year
Delivery Time :	20 workdays after get deposit

Add to Cart

Product Details
Company Profile

Industrial Air Cooled Chiller

Industrial Air Cooled Chiller

Introduction:
1. Nominal cooling capacity is according to:
Inlet chilled fluid temperature: 12 degree
Outlet chilled fluid temperature: 7 degree
Inlet cooling air temperature: 30 degree
Outlet cooling air temperature: 35 degree

2. Working range:
The temperature range of chilled fluid is from 5 degree to 35 degree
Temperature difference between inlet and outlet chilled fluid is from 3 degree to 8 degree
It is better to use the chiller while the ambient temperature at or below 35 degree.
We reserve the right to modify the above dimensions or parameters without further notice.

Main technical parameter:

Model Item		AC-1
nominal cooling capacity	kcal/h	2451
nominal cooling capacity	kw	2.85
input power	kw	1.46
power supply	1PH~220V/50HZ
refrigerant	type	R407c
refrigerant	type of control	capillary
compressor	type	hermetic rotary
compressor	power(kw)	0.95
condenser	type	finned copper tube + low noise outer rotor fan
condenser	cooling air flow(m³/h)	1000
evaporator	type	Water tank with coil
	chilled fluid flow(m³/h)	1
	volume(L)	16
	inlet and outlet pipe diameter (inch)	1/2
water pump	power(kw)	0.55
water pump	lift(m)	36
safety protection	compressor thermal protection, over current
weight	kg	73
dimension	mm	580440750

Contacts:
Industrial Air Cooled Chiller

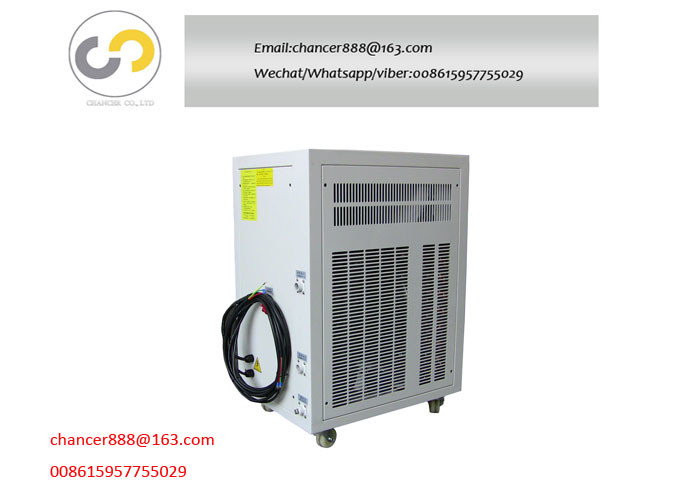

Machine picture:

Industrial Air Cooled Chiller
