Surface slitting and rewinding machine for paper straw,ribbon, PE film, paper

Ask Lasest Price
Brand Name :	CHANCER
Model Number :	ZKF-900
Certification :	CE
Price :	Negotiation
Payment Terms :	T/T
Supply Ability :	60sets per year
Delivery Time :	30 working days after get deposit

Add to Cart

Product Details
Company Profile

Surface slitting and rewinding machine for paper straw,ribbon, PE film, paper

Feature:

This machine is suitable for slitting and rewinding such various roll materials as BOPP, PET, CPP, CPE, PVC, aluminum foil and paper, etc. And can cut edge separate and cut material according to different requirements during production.

Automatic EPC for unwinding, photocell is suitable for tracking the edge of transparent material and printed material.

Equipped with magnetic powder brake for unwinding tension control. Magnetic clutch control for rewinding tension control. It can be equipped with rim charge conveying or rewinding device

The overall design of the machine with high efficiency, high precision, high reliability as the basic starting point, combined twenty years of experience and cutting machine manufacturing technology, and many other advantages. So that customers really appreciate the high quality, low cost cutting machine of superior performance.

Specification:

Model	ZKF-900
Slitting Material	Film, Paper Roll 60-250 gram, Nonwoven, Ribbon, etc roll material
Slitting Width	5-900 mm
Unwinding Diameter	600mm , 6" Air shaft (154mm)
Rewinding Diameter	2X400mm, 6" Air shaft (154mm)
Machine Speed	180m/min
Slitting Speed	160m/min(According to different material)
Main Motor	3kw frequency conversion motor
Fan for waste edge	1.1KW 3Phase
Transmission	Belt
Guide Roller	￠80 Hard Aluminum Alloy
Machine Construction	Alloy Iron
Power Supply	3 Phase 4 wires, 380V (According to customer)
Web guide scope	120mm Accuracy:±0.3mm
Machine Weight	3000KG

Contacts:

Surface slitting and rewinding machine for paper straw,ribbon, PE film, paper

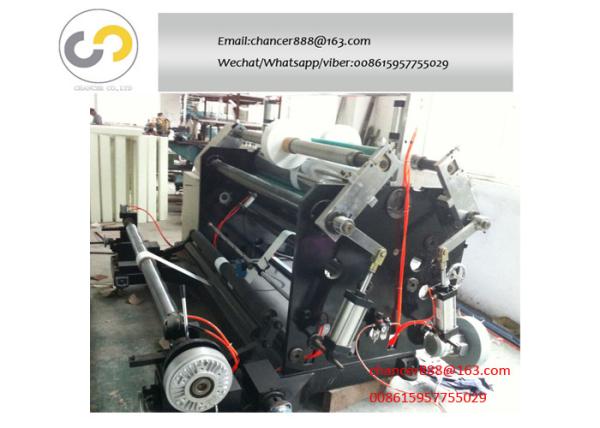

Machine picture:

Surface slitting and rewinding machine for paper straw,ribbon, PE film, paper

Sample picture:

Surface slitting and rewinding machine for paper straw,ribbon, PE film, paper
