450mm Maximum Width Paper Rotary Confetti Die Cutting Machine

Ask Lasest Price
Brand Name :	Chancer
Model Number :	HH-320
Certification :	CE
Price :	9800USD per set
Payment Terms :	T/T
Supply Ability :	50set per year
Delivery Time :	30days

Add to Cart

Product Details
Company Profile

450mm Maximum Width Paper Rotary Confetti Die Cutting Machine

Use:

1. Unwind shaft with limiting baffle, easy for material fixing. Unwind web guide adopt frame mode, easy for adjusting, and with high precision.

2. Die cutting axle head fixing seat adopt circle design, it is easy for assemble and disassemble, compare with traditional square shape fixing seat, it saves half time. Die cutting pressure adjusting screw arbor is rotation structure, it do not need to take off.

3. Transmission adopt synchronous belt to reduce noise.

4. Unwind and waste collection all adopt magnetic powder brake/clutch to control, operation stable.

5. Unwind adopt auto tension control for constant tension, rewind adopt taper tension control

6. Unwind, waste collection air shaft all auto air charge.

Technical parameter:

Item	Content
Max Die cutting speed	80m/min
Die cutting girth	200-500mm
Max. width of roll	320mm
Max. diameter of unwinding roll	700mm
Overall size(LWH)	180012001800mm
Weight	800KG
Power supply	AC220V

Contacts:

450mm Maximum Width Paper Rotary Confetti Die Cutting Machine

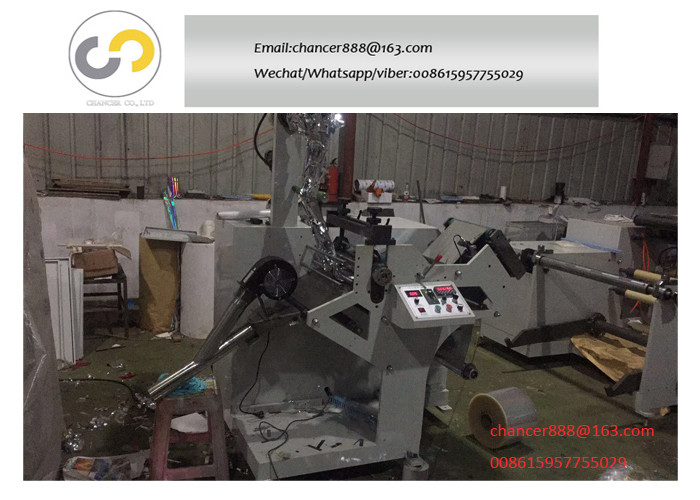

Machine picture:

450mm Maximum Width Paper Rotary Confetti Die Cutting Machine

Sample picture:

450mm Maximum Width Paper Rotary Confetti Die Cutting Machine
